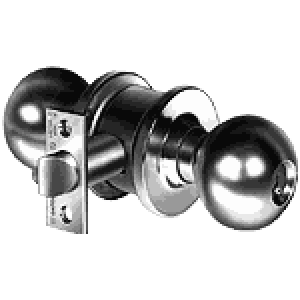

Model: series 160
6 Line is a highly styled standard duty lock line incorporating a broad spectrum of functions, designs, and finishes, built to conform to Federal Specification Series 160.
They are completely reversible either before or after installation.
The 6 Line is ideally suited for:
� Fine homes
� Motels
� Apartment houses
� Small commercial buildings
Features and Benefits:
� For doors 1 3/8 in. to 1 3/4 in. thick
� 2 3/8 in. backset. Can be furnished to order with 2 3/4 in., 3 3/4 in. and 5 in. backsets.
� Steel cylindrical housing with zinc-dichromate finish
� Front: brass, bronze, stainless steel; 2 1/4 in. x 1 in.
� Strike: curved lip, No. 600, ANSI A115.3 brass, bronze, stainless steel; with wrought steel box
� Non-cylinder set universal. Cylinder sets can be reversed easily in the field. Interchangeable core sets are handed and should be specified RH or LH.
� Brass latchbolt with 1/2 in. throw, UL Listed
� Two keys
� Brass 6 pin cylinder
� Can be masterkeyed or grandmaster keyed
� Finishes: 3, 10, 10B, 26, 26D
