Deadbolt

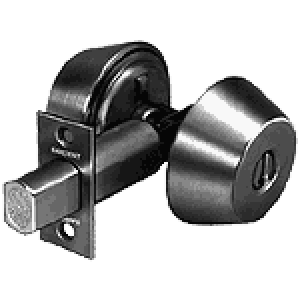

480 Series-SARGENT

A high grade cylindrical deadbolt which meets ANSI A156.5 Grade 1 requirements

Features and Benefits:

· Fits 160 (20 prefix) and 161 (standard) cut outs.
· 1 3/8 inch to 1 3/4 inch thick doors standard.
· Meets ANSI A156.5 Grade 1 requirements.
· 2 3/4 inch backset standard, 2 3/8 available (20 prefix).
· Solid steel bolt with hardened steel pin insert and nickel silver plating.

· Brass cylinder, 6-pin. 2 nickel silver keys.
· Can be masterkeyed with other Sargent locks. Construction key system available.

· Non ferrous, reinforced, one piece housing.
· Non-handed, field reversible.
· Non ferrous turn lever.
· Wrought brass, bronze, or stainless steel front 2 1/4 inch by 1 1/8 inch with fixed bevel furnished standard.

· Wrought brass, bronze, or stainless steel strike.
